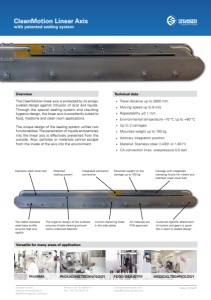

CleanMotion Linear Axis

Strasser GmbH Phone + 49 751 56161 0 www.strasser-gmbh.com Heinrich-Hertz-Straße 6 Fax + 49 751 56161 8 sales@strasser-gmbh.com 88250 Weingarten, Germany Status: 07/2022 CleanMotion Linear Axis with patented sealing system Technical data • Travel distance up to 2600 mm • Moving speed up to 6 m/s • Repeatability ±0.1 mm • Environmental temperature –10 °C up to +60 °C • Up to 2 carriages • Mounted weight up to 100 kg • Arbitrary integration position • Material: Stainless steel (1.4301 or 1.4571) • CA connection (max. overpressure 0.5 bar) Overview The CleanMotion linear axis is protected by its encap- sulated design against intrusion of dust and liquids. Through the special sealing system and resulting hygienic design, the linear axis is excellently suited to food, medicine and clean room applications. The unique design of the sealing system unifies two functionalities.The penetration of liquids and particles into the linear axis is effectively prevented from the outside. Also, particles or materials cannot escape from the inside of the axis into the environment. Carriage with integrated clamping fixture for v-belts and stainless steel cover belt Integrated lubrication connection Mounted weight on the carriage up to 100 kg Stainless steel cover belt Patented sealing system The stable stainless steel base profile ensures high axis rigidity The hygienic design of the surfaces ensures simple cleaning and pre- vents undesired deposits All materials are FDA approved Customer-specific attachment of motors and gears is possi- ble in open or sealed design Custom fastening holes in the side plates Versatile for many areas of application FOOD INDUSTRY PHARMA PACKAGINGTECHNOLOGY MEDICALTECHNOLOGY
